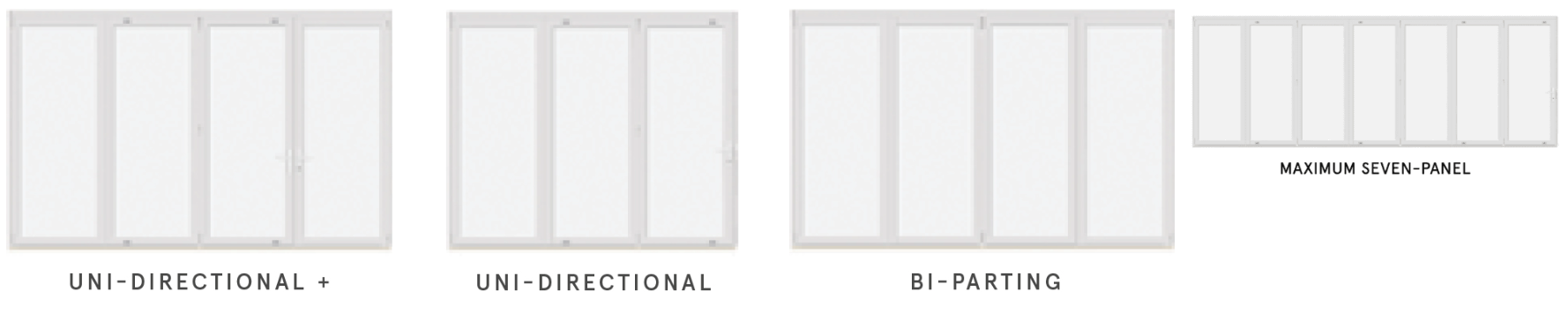

How Do Infinity® Bifold Patio Doors Operate?
Infinity® bifold doors use a carefully engineered top-hung design. The weight of the panels is supported from above as the door moves along its track, allowing the panels to fold and stack with smooth operation.
The system is available in different operating layouts based on how you want the door to open and where you want the panels to collect.
Bi-Parting Bifold Door
A bi-parting configuration opens from the center. Panels fold toward both sides of the opening, creating a balanced appearance and symmetrically framing the outdoor view.
Best for: Large, centered openings where symmetry is important and there is room for panels to stack on both sides.
Uni-Directional Bifold Door
A uni-directional configuration moves and stacks the panels completely to one side. Depending on the project, the panels can be configured to stack toward the left or right.
Best for: Homeowners who want the open panels concentrated on one side or need to preserve a clearer traffic path on the other.
Uni-Directional Bifold Door With Access Panel
Certain uni-directional configurations can include an access panel that operates more like a conventional swinging door. This makes routine trips outside easier without requiring you to fold open the entire system.
Best for: Frequently used doors connecting kitchens, living rooms, decks, patios, and backyards.
How Large Can an Infinity® Bifold Door Be?
Infinity® bifold patio doors are available with as many as seven panels and can span openings up to 22 feet wide. Smaller configurations beginning with two panels are also available.
The maximum product size does not mean every home should use the maximum configuration. The appropriate size depends on:
- The width and height of the existing opening
- The structural capacity of the wall
- The amount of construction the homeowner is willing to undertake
- Interior and exterior clearance
- Wind and weather exposure
- The desired location of the stacked panels
- How people will move through the opening
- The relationship between the finished floor and exterior surface
Our team measures and evaluates the opening before a final door is ordered. For projects involving significant structural changes, additional contractors or engineering may be required before installation can proceed.
How Do Bifold Doors Perform in Colorado?
Colorado creates a demanding environment for any large patio-door system. Strong ultraviolet exposure, temperature changes, snow, wind, dry air, and direct western or southern exposure can all affect door materials, seals, finishes, and long-term operation.
This matters even more with a large glass opening. A bifold door has multiple panels, joints, seals, hardware components, and connection points that must work together as one complete system.
Ultrex® Fiberglass Construction
Infinity® bifold patio doors are made with Ultrex® fiberglass on the interior and exterior. The strength and dimensional stability of fiberglass allow Infinity® to create narrow profiles and large glass panels without relying on the bulkier frames often associated with less rigid materials.
Ultrex® fiberglass is designed to resist warping, rotting, cracking, and deterioration from moisture. Its stability also helps the door maintain alignment and consistent operation through Colorado's changing seasons.
Glass Selection Matters
Because a bifold door contains a substantial amount of glass, the glass package can have a major effect on comfort. The best option may depend on the direction the door faces, surrounding shade, elevation, room use, and how much direct sunlight reaches the opening.
A south- or west-facing bifold door may need a different glass strategy than a shaded north-facing opening. Selecting glass based only on appearance can lead to overheating, glare, fading, or reduced comfort.
Exposure and Overhangs Matter
The protection provided by a roof, overhang, covered patio, or recessed opening should be considered during planning. A highly exposed opening may experience more wind-driven moisture, snow accumulation, and direct sunlight than a protected door beneath a substantial overhang.
The product, sill, flashing, drainage, surrounding construction, and exterior conditions must be evaluated as a complete system.
What Is the Difference Between a Bifold Door and a Sliding Patio Door?
A sliding patio door moves horizontally, with one or more panels passing in front of or behind another. This makes sliding doors practical, space-efficient, and easy to use every day, but a portion of the opening generally remains occupied by a stationary or overlapping panel.
A bifold door uses hinged panels that fold and stack to one or both sides. This allows a much larger percentage of the opening to remain unobstructed when the door is open.
| Consideration | Bifold patio door | Sliding patio door |
|---|---|---|
| Open-wall effect | Opens most of the available wall | Part of the opening generally remains covered |
| Everyday operation | Multiple panels fold and stack | One or more panels slide horizontally |
| Space requirements | Requires room for stacked panels | Does not require panel stacking or swing space |
| Project complexity | Typically more complex | Usually more straightforward |
| Visual impact | Creates a dramatic architectural feature | Provides a clean, practical glass opening |
| Typical investment | Generally higher | Generally lower than a comparable bifold system |
Choose a bifold door when opening the wall and transforming the indoor-outdoor experience are priorities. Choose a sliding patio door when easy daily operation, space efficiency, and a more straightforward replacement are more important.
Explore Infinity® Sliding Patio Doors
What Is the Difference Between a Bifold Door and a French Door?
French doors use one or two hinged panels that swing inward or outward. They provide a traditional appearance and can create a generous opening, but the panels require clear swing space.
Bifold doors use multiple connected panels to create a substantially wider opening. They are usually selected for larger living spaces and projects where the homeowner wants a stronger indoor-outdoor connection.
A French door may be the better choice for traditional architecture, a smaller opening, or homeowners who prefer the familiar operation of a hinged door. A bifold door may be the better choice when the opening itself is intended to become a major design feature.
Explore Infinity® Swinging French Doors
Infinity® Bifold Door Security and Hardware
A large glass door should feel secure and stable when closed. Infinity® bifold doors use an integrated multi-point locking system designed to secure the door at multiple locations.
Multi-Point Locking System
The concealed locking system is integrated within the door panels to maintain a clean appearance. Interior twin-bolt hardware is used to release or secure the panels, while magnetic catches help protect and hold the folded panels when the door is open.
Hardware Finish Options
Available handle finishes may include:
- White
- Sierra
- Satin Taupe
- Satin Nickel
- Brushed Chrome
- Brass
- Antique Brass
- Oil Rubbed Bronze
- Matte Black
Finish availability may vary by handle collection and hardware component. Your design consultant can confirm which combinations are available for your selected door configuration.
Infinity® Bifold Door Colors and Interior Finishes
Infinity® bifold doors can be customized to coordinate with the home's exterior architecture and interior design. Physical samples should always be reviewed before making a final selection because screen displays and online images may not represent colors precisely.
Exterior Color Options
- Stone White
- Sierra
- Cashmere
- Pebble Gray
- Bronze
- Bahama Brown
- Ebony
Interior Color and Finish Options
- Stone White
- Sierra
- EverWood®
- Bronze
- Ebony
What Is EverWood®?
EverWood® is an engineered interior finish designed to provide the appearance of wood while retaining the performance benefits of the fiberglass door system. It can be finished to coordinate with surrounding trim, cabinetry, flooring, and other interior materials.
EverWood® can be a strong option for homeowners who want a warmer or more traditional interior appearance without placing an exposed natural-wood surface on the exterior of the door.
Can an Infinity® Bifold Door Include a Screen?
Infinity® offers a pleated fabric screen designed specifically for the bifold system. The screen slides across the opening and can be positioned as needed. When it is not in use, the pleated material folds compactly toward the jamb to help preserve the outdoor view.
Screen configurations are available for both bi-parting and uni-directional door systems, depending on the selected layout.
A pleated screen behaves differently from a conventional rigid sliding screen. Homeowners should see and understand its operation before ordering so they know what to expect from the finished system.
What Should You Know About the Bifold Door Sill?
The sill is one of the most important and frequently overlooked parts of a bifold-door project. It affects the transition between the interior floor and exterior surface, weather management, drainage, accessibility, and the finished appearance of the opening.
The Infinity® bifold door performance sill is available in Beige or Bronze. The surrounding conditions must be evaluated before installation, including:
- Interior flooring height
- Exterior deck, patio, or concrete height
- Drainage direction
- Snow and moisture exposure
- Existing flashing and waterproofing
- Required clearances
- How the sill will be supported beneath the full opening
A visually low transition is appealing, but it cannot come at the expense of proper drainage, weather protection, or structural support. The appropriate detail depends on the home and the exposure of the opening.
Does Replacing a Patio Door With a Bifold Door Require Construction?
It can. Replacing an existing opening with a similarly sized bifold system may be more straightforward. Expanding a standard patio door into a large folding glass wall can involve considerably more work.
Depending on the home, the project may require:
- Removal of existing doors, windows, wall sections, or exterior finishes
- Structural engineering or review
- A new or larger structural header
- Framing modifications
- Electrical relocation
- Interior drywall and trim repair
- Exterior siding, stucco, stone, or masonry work
- Flooring transitions
- Deck or patio modifications
- Permits or inspections
These conditions cannot be determined accurately from a product photo or rough width measurement. A professional evaluation of the opening is necessary before the complete project scope can be established.
Why Bifold Door Installation Matters
A bifold patio door is only as reliable as the opening and installation supporting it. Multiple large glass panels must remain aligned so they can move, seal, lock, and stack correctly.
The rough opening must be properly prepared, level, square, supported, flashed, insulated, and integrated with the surrounding wall. Small installation errors can become noticeable across a wide opening and may affect operation, water management, air infiltration, or locking.
A proper bifold-door installation should address:
- Accurate measurements and configuration planning
- Structural preparation of the opening
- Continuous and adequate support beneath the sill
- Correct head-track alignment
- Proper flashing and water management
- Air sealing and insulation around the frame
- Panel alignment and hardware adjustment
- Integration with interior and exterior finishes
- Final operation, locking, and drainage testing
- A homeowner walkthrough explaining operation and care
This is not the product to choose based only on the lowest installation bid. The door, structure, sill, flashing, and surrounding construction must work together for the system to perform as intended.
How Much Does an Infinity® Bifold Patio Door Cost?
Infinity® bifold patio doors are custom-built systems, so there is no single price that accurately represents every project. The final investment depends on the size of the opening, number of panels, operating configuration, glass, finishes, hardware, screen, installation conditions, and whether structural changes are required.
A smaller replacement using an existing opening is a different project from removing a large portion of an exterior wall, installing a new structural header, and rebuilding the surrounding interior and exterior finishes.
In general, homeowners should expect a custom bifold door to represent a higher investment than a conventional sliding patio door. The right comparison is not simply one patio door against another. It is the cost and value of transforming an exterior wall into a large, operable indoor-outdoor opening.
Gravina's Window Center of Littleton® provides a project-specific proposal after evaluating the home, opening, product selections, and installation requirements. We do not believe homeowners should be given an unrealistic starting number that excludes the work necessary to complete the project correctly.
What to Expect During Your Bifold Door Project
1. In-Home Evaluation
We inspect and measure the opening, discuss how you want to use the space, evaluate interior and exterior conditions, and identify visible factors that may affect the project.
2. Product and Configuration Selection
We help you compare bi-parting, uni-directional, and access-panel configurations. We also review glass, finishes, hardware, screen options, panel stacking, traffic flow, and sill considerations.
3. Project-Scope Review
We explain what is included in the proposed work and identify construction items that may require further evaluation, engineering, specialty trades, or separate work.
4. Final Measurement and Ordering
Because the door is custom-built for the opening, measurements and specifications must be finalized before the order is submitted.
5. Opening Preparation and Installation
The existing materials are removed, the opening is prepared, and the bifold system is installed, aligned, flashed, insulated, and tested according to the defined project scope.
6. Final Walkthrough
We demonstrate how to operate, secure, and care for the door and review the completed installation with the homeowner.
Why Choose Gravina's Window Center of Littleton®?
Gravina's Window Center of Littleton® has served Colorado homeowners since 1973. We are not simply providing a door specification. We are helping homeowners determine whether a large bifold system makes sense for their architecture, lifestyle, opening, exposure, and budget.
Colorado homeowners choose our team because we provide:
- More than five decades of local window and door experience
- Extensive experience with Infinity® by Marvin® products
- In-house installation crews for our window and door projects
- A lifetime workmanship warranty
- A dedicated service department
- Product and glass recommendations based on Colorado conditions
- Detailed proposals built around the actual project scope
- A consultative process without pricing games
We do not sell cheap windows or patio doors. We recommend products designed to provide lasting value, and we install them with the attention required for long-term performance.
See Infinity® Bifold Patio Doors in Colorado
Pictures can demonstrate the appearance of a bifold door, but seeing the materials, finishes, hardware, profiles, and operation in person can make the decision much easier.
Visit the Gravina's Window Center of Littleton® showroom or schedule an in-home consultation to discuss your opening and determine whether an Infinity® bifold patio door is the right solution for your home.
Gravina's Window Center of Littleton®
209 W. Littleton Boulevard
Littleton, CO 80120
303-794-0490
Request a Bifold Patio Door Consultation
Frequently Asked Questions About Infinity® Bifold Patio Doors
How do bifold patio doors open?
Bifold doors use multiple hinged glass panels that travel along a track. As the door opens, the panels fold together and stack at one or both sides of the opening.
How wide can an Infinity® bifold door be?
Infinity® bifold doors are available with up to seven panels and can span openings up to 22 feet wide. Smaller configurations beginning with two panels are also available.
Can a bifold door include a regular entry door?
Certain uni-directional configurations can include an access panel for convenient everyday entry and exit without opening the complete bifold system.
Can Infinity® bifold doors open from the center?
Yes. A bi-parting configuration opens from the center and folds panels toward both sides. Uni-directional configurations stack the panels to either the left or right.
Do Infinity® bifold doors have screens?
An optional pleated fabric screen is available for compatible configurations. It slides across the opening and folds compactly toward the jamb when not in use.
Are bifold doors energy efficient?
Energy performance depends on the complete door system, glass package, size, orientation, exposure, installation, and surrounding construction. Infinity® bifold doors use Ultrex® fiberglass frames and are available with glass options that can be selected for the home's conditions.
Are bifold doors good for Colorado weather?
Ultrex® fiberglass provides the strength and dimensional stability needed for large door panels and is designed to resist warping, rotting, and deterioration. Proper glass selection, sill support, flashing, drainage, and installation remain essential in Colorado's climate.
What are the disadvantages of bifold patio doors?
Bifold doors generally require a higher investment than standard sliding doors, need room for the panels to stack, and may involve structural or finish work when enlarging an opening. They also require more installation planning because multiple panels and components must remain properly aligned.
Are bifold patio doors worth it?
They can be worth the investment when the homeowner will use the wide opening and values indoor-outdoor living, expansive views, natural light, and architectural impact. They may not be the best value when the homeowner primarily needs a simple door for routine backyard access.
Can I replace a standard patio door with a bifold door?
Often, yes, but the amount of work depends on the desired bifold-door width and the construction of the existing wall. Enlarging the opening may require engineering, framing, a new header, electrical work, and repairs to interior and exterior finishes.
How long does bifold door installation take?
The installation schedule depends on the size and complexity of the project. A replacement within an existing prepared opening is different from a project requiring structural changes and reconstruction of the surrounding wall. The expected scope and schedule should be defined before work begins.
Where can I buy Infinity® bifold doors near Denver?
Gravina's Window Center of Littleton® provides Infinity® bifold patio doors and professional installation for homeowners throughout Denver, Littleton, and Colorado's Front Range. Visit our Littleton showroom or schedule an in-home consultation to discuss your project.
